TWN 60

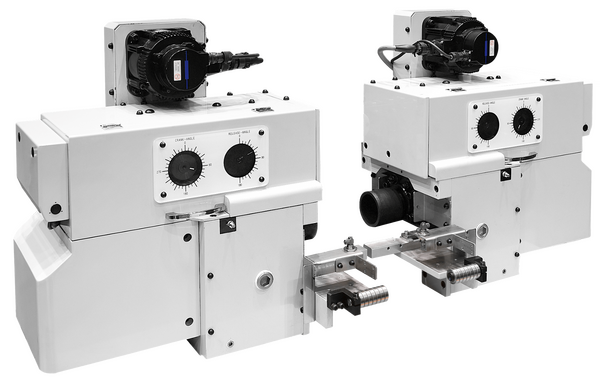

Twin Feeder
The Twin Feeder allows simultaneous feeding of two strips with independent settings for feed and pilot release angles. Equipped with servo-driven rollers, it handles steel, copper, and aluminum with precision. Each unit can operate separately via independent consoles, and all parameters are controlled directly from the press HMI. Optional configurations include C-frame design for minimal strip spacing and spike wheel integration.
- Feeds two strips independently.
- Servo-driven rollers for precision.
- Handles steel, copper, and aluminum.
- Units run independently.
- Parameters set via HMI.
Technical details
- Maximum strip width for both feeders
- 40 mm
- Feed pitch max. (adjustable independently for both units)
- 100 mm max.
- Distance between strips
- 8–150 mm
- Material thickness min.
- 0.1 mm
- Material thickness max.
- 0.8 mm
- Press speed
- 1000 spm max.
